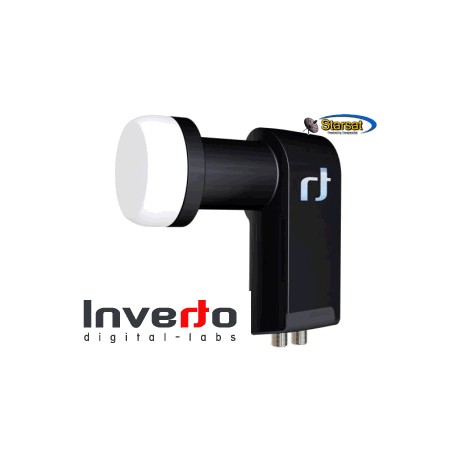

LNB Inverto Black Ultra Edition con Lte- Twin 0,2db (originale)

Riferimento SKU-718

Condizione: Nuovo prodotto

Questo prodotto non è più disponibile

Attenzione: Ultimi articoli in magazzino!

Disponibile dal:

Twitta Condividi Google+ Pinterest

Con l'acquisto di questo prodotto è possibile raccogliere fino a 2 Punti fedeltà. Il totale del tuo carrello 2 Punti fedeltà che può essere convertito in un buono di 0,40 €.

• Invia a un amico

  Invia a un amico



  LNB Inverto Black Ultra Edition con Lte- Twin 0,2db (originale)

  LNB INVERTO BLACK Ultra Twin High-Gain Low-Noise 40mm       con filtro Lte                                                                                                                                          originale con logo serigrafato in metallo

  ottimo rendimento anche con parabole diametro 125, 150, 180 cm




  This LNB is a high performance product featuring the lowest noise figure available to address the need for superior reception under the edges of the satellite footprint skirt.
  Thanks to its novel front-end architecture and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance.
  The combination of higher spec components, excellent isolation and advanced filter design enables improved handling of interfering spurious and provides the leap in the overall reception performance compared with standard LNBs

  Main Features

  Superior Phase Noise performance DVB-S2 (HDTV) compliant
  Excellent isolation – extremely high cross-pol performance
  Very low spurious levels
  Superior Noise Figure
  Higher conversion gain
  Ultimate reliability
  3 years warranty

  Technical Specifications

  Low Band Input Frequency Range: 10.7~11.7 GHz
  Low Band Output Frequency Range: 950~1950 MHz
  LO Frequency: 9.75 GHz
  High Band Input Frequency Range: 11.7~12.75 GHz
  High Band Output Frequency Range: 1100~2150 MHz
  LO Frequency: 10.6 GHz
  Noise Figure: 0.2dB typ. (0.7dB max.)
  LO Initial Accuracy: +/- 1.0 MHz max.
  LO Temperature Drift: +/- 3.0 MHz max.
  LO Phase Noise @ 10K Hz: -90 dBc/Hz max.
  Conversion Gain: 60 dB min.
  Gain Ripple: +/- 0.75 dB/27MHz
  Gain Variation: +/- 4 dB
  Image Rejection: 40 dB min.
  1 dB Compression Point (O/P):0.0 dBm min.
  Cross talk:23dB min.
  Control Signals Ca [ V ]: 11.0~14.0 V
  Control Signals Cb [ H ]:16.0~20.0 V
  Control Signals Cc [Band switching]: 22KHz +/- 4KHz 0.4V – 0.8V pp
  Output VSWR: 2.0 : 1
  Radiated Interference: -60 dBm max.
  DC Power: 180mA max. @ 11 – 20V
  Working Temperature: -30~+60 °C
  Output Impedance (connect to STB): 75Ω
  Output connector: F-type (female)
  Weight: 181 g
