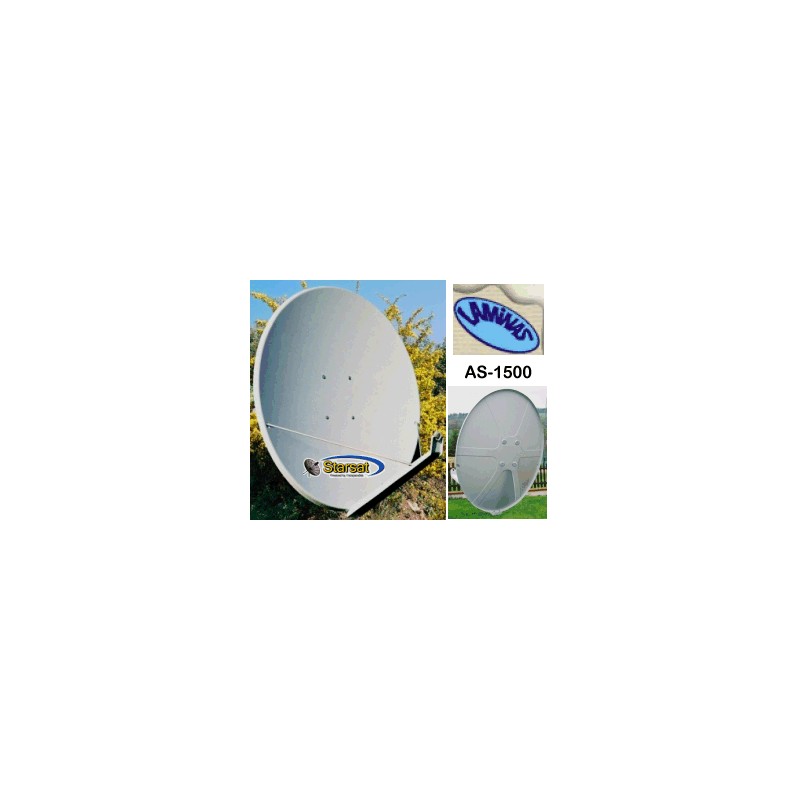

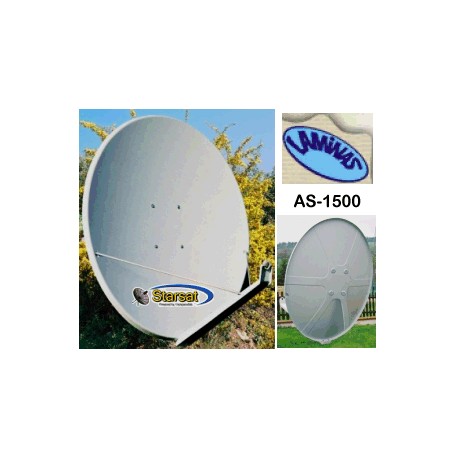

Parab.160 O/SLaminas + Az EL senza imballo, ritiro in negozio
TEMPI DI CONSEGNA 10 - 15 GG
PARAMETER AS-160
Dish size 1530x1650
Reflector material Glass fiber reinforced EPOXY
Operating frequency GHz 10.7÷12.8
Gain at frequency dB: 10,7GHz 11,3GHz 12,6GHz - 42,7 43,2 44,1
Beamwidth (-3dB) deg 10,7GHz 11,3GHz 12,6GHz - 1,3 1,2 1,1
Focus mm 1100
Offset deg 25,6
Converter holder diameter mm 40
Max. mast pipe size mm 60
Weight (with mount) Polar mount kg 17,0 - E-A 12,0
Wind Loading Operational km/h 80 Survival 200
ASZ-1500 - Supporto AZ-EL
Mount Size | mm | 300 x 350 x 220 |
Elevation Adjustment Range | deg | -60 ÷ +4 or -4 ÷ +60 |
Azimuth Adjustment Range | deg | 0 ÷ 360 |
Mast Pipe Interface | mm | 60 ÷ 88 |
Weight | kg | 5,10 |
Material | Mild Steel Hot Dipped Galvanized |
Package Size | Cardboard box 215 x 210 x 195mm and 360 x 120 x 60mm (1 or 2 pcs) |
Compatible Accessories | AS-1500, AS-1500G Dish |
In Stock
