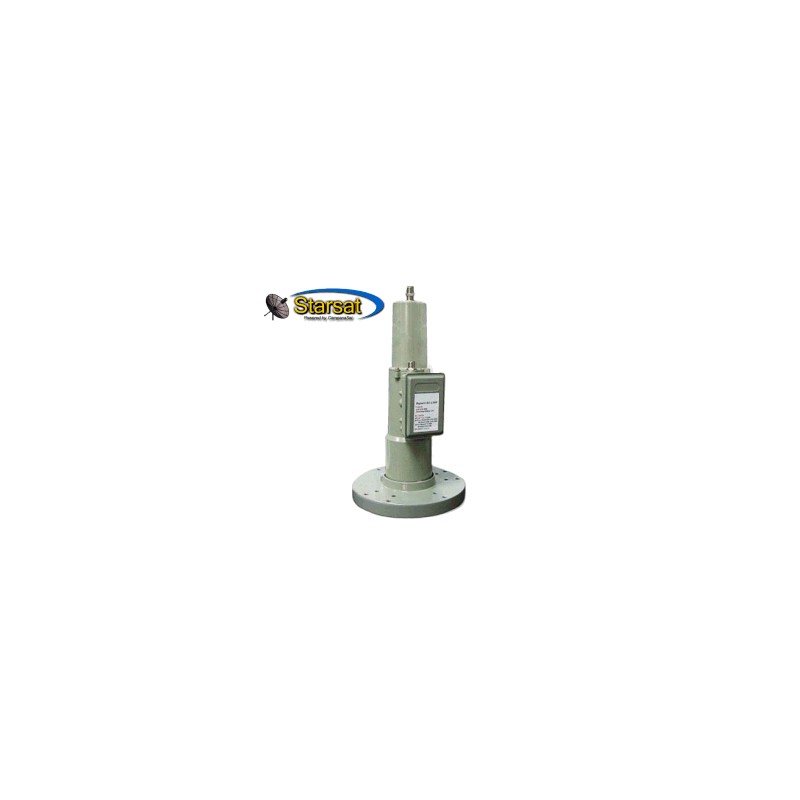

Universal C/KU Band LNB 13K (uscite separate) Visualizza ingrandito

Universal C/KU Band LNB 13K (uscite separate)

SKU-1348

Nuovo prodotto

Universal C/KU Band LNB 13K  (uscite separate)

Detailed Description

This LNBF can be used on 4DTV by running two coaxes from the receiver to the LNBF.  Do not use the jumper cable when using with 4DTV Ready. The best C-Band LNB.

Comes with 2 RG6 jumpers and 1 2x1 DisecqC switch to combine both C band and KU Bang frequency's.   Di Plate not included.

Model

Sat621-741
Standard
Sat6212-741u
Universal
Sat621-2D
Universal
Ku LO
10750 MHz
9750/10600 MHz
9750/10600 MHz
C LO
5150 MHZ
5150 MHZ
5150 MHZ
Switching
22KHz
DiSEqC
N/A
Ku Frequency
11.7-12.2 GHz
9.75/10.6 GHz
9.75/10.6 GHz
C Frequency
3.4-4.2 GHz
3.4-4.2 GHz
3.4-4.2 GHz
4DTV
Yes
Yes
Yes



Ku Band

Input Frequency10.7-11.7 GHz / 11.7-12.75 GHz
Output Frequency950-1950 MHz / 1100-2150 MHz
L.O. Frequency9.75 GHz / 10.60 GHz
Gain56 dB Typical
Noise Figure0.3 dB Typical
Switching Voltage13/18 VDC
Output ConnectorF Type, Female


C Band

Input Frequency3.4-4.2 GHz
Output Frequency950-1750 MHz
Conversion Gain65 dB Typical
Noise Figure13° K Typical
Switching Voltage13/18 VDC
L.O. Frequency5.15 GHz



Should your area require the Ku and C polarities be opposite you can follow these simple instructions to change your Sat621-2D C/Ku LNBF.

Separate the C and Ku housings by removing the three screws that hold them together.

Remove the LNBF from the Ku housing by removing the 'F' connector nut and pushing on the 'F' connector until the LNBF is pushed out of the housing. Use care not to damage the 'F' connector.

Maggiori dettagli

Questo prodotto non è più disponibile

Con l'acquisto di questo prodotto è possibile raccogliere fino a 6 Punti fedeltà. Il totale del tuo carrello 6 Punti fedeltà che può essere convertito in un buono di 1,20 €.


64,00 € Tasse incluse

Consegna: da 1 a 3 settimane

Sconti sul volume

QuantitàScontoSalva
3 4% Fino a 7,68 €

Dettagli

Universal C/KU Band LNB 13K  (uscite separate)

Detailed Description

This LNBF can be used on 4DTV by running two coaxes from the receiver to the LNBF.  Do not use the jumper cable when using with 4DTV Ready. The best C-Band LNB.

Comes with 2 RG6 jumpers and 1 2x1 DisecqC switch to combine both C band and KU Bang frequency's.   Di Plate not included.

Model

Sat621-741
Standard
Sat6212-741u
Universal
Sat621-2D
Universal
Ku LO
10750 MHz
9750/10600 MHz
9750/10600 MHz
C LO
5150 MHZ
5150 MHZ
5150 MHZ
Switching
22KHz
DiSEqC
N/A
Ku Frequency
11.7-12.2 GHz
9.75/10.6 GHz
9.75/10.6 GHz
C Frequency
3.4-4.2 GHz
3.4-4.2 GHz
3.4-4.2 GHz
4DTV
Yes
Yes
Yes



Ku Band

Input Frequency10.7-11.7 GHz / 11.7-12.75 GHz
Output Frequency950-1950 MHz / 1100-2150 MHz
L.O. Frequency9.75 GHz / 10.60 GHz
Gain56 dB Typical
Noise Figure0.3 dB Typical
Switching Voltage13/18 VDC
Output ConnectorF Type, Female


C Band

Input Frequency3.4-4.2 GHz
Output Frequency950-1750 MHz
Conversion Gain65 dB Typical
Noise Figure13° K Typical
Switching Voltage13/18 VDC
L.O. Frequency5.15 GHz



Should your area require the Ku and C polarities be opposite you can follow these simple instructions to change your Sat621-2D C/Ku LNBF.

Separate the C and Ku housings by removing the three screws that hold them together.

Remove the LNBF from the Ku housing by removing the 'F' connector nut and pushing on the 'F' connector until the LNBF is pushed out of the housing. Use care not to damage the 'F' connector.
